Hand Valve-HVFFT

Artículo No.: HVFFT01/HVFFT02/HVFF03/HVFFT04
Hand Valve Fittings
Female Thread to Female Thread

Hand Valve Air Flow from Female Thread to Female Thread

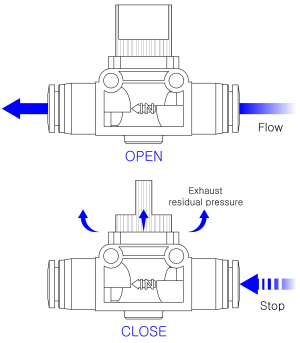

ㆍThe source of pressure can be completely shut off by simply turning the knob.
ㆍThree-way directional control configuration releases the residual internal pressure on the output side when manually closed.
ㆍIdeal for inspecting or repairing any devices without compromising the safety.
ㆍDirectionality of airflow could be from the tubing or threaded input side to the tubing or threaded output side.
Hand Valve Fittings-HVC


Applicable Fluid Type Air, Water(No Drinking Water)
Working Pressure Range -14~150 PSI -0.99~9.9Kgf/m?('-99~990Kpa)
Negative Pressure -29.5 in Hg(-14PSI) -750mmHg(-750Torr)
Working Temperature Range 23~140℉ (Air) 32~104℉ (Water) -5~60℃ (Air) 0~40℃ (Water)
Recommanded Tubings PA11, PA12, PA6, PE, PU,FEP,PFA

HVU Hand Valve Fittings

Item Code Thread(BSPT/NPT) Tube Size(BSPT/NPT)
HVFFT-01 1/8 1/8
HVFFT-02 1/4 1/4
HVFFT-03 3/8 3/8
HVFFT-04 1/2 1/2
