◎ FEATURES
ㆍAccurate regulation of an optimal airflow rate for precise motion control.
ㆍCompact and space-saving configuration provides a functionally wide range of airflow rates.

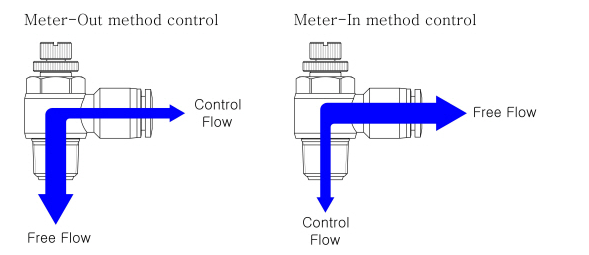

ㆍAvailable in control method type for metering of unidirectional airflow either entering into or exhausting out of a driving device.
◎ SPECIFICATIONS
| |
|
|
| Applicable Fluid Type |
Air, Water(No Drinking Water) |
|
| Working Pressure Range |
-14~150 PSI |
-0.99~9.9Kgf/m?('-99~990Kpa) |
| Negative Pressure |
-29.5 in Hg(-14PSI) |
-750mmHg(-750Torr) |
| Working Temperature Range |
23~140℉ (Air) 32~104℉ (Water) |
-5~60℃ (Air) 0~40℃ (Water) |
| Recommanded Tubings |
PA11, PA12, PA6, PE, PU,FEP,PFA |
JSC Air Control Valve; Metric tube size with G thread size
| Item Code |
Tube Size(mm) |
Thread(G) |
| JSC4-G01 |
4 |
G1/8 |
| JSC4-G02 |
4 |
G1/4 |
| JSC6-G01 |
6 |
G1/8 |
| JSC6-G02 |
6 |
G1/4 |
| JSC6-G03 |
6 |
G3/8 |
| JSC6-G04 |
6 |
G1/2 |
| JSC8-G01 |
8 |
G1/8 |
| JSC8-G02 |
8 |
G1/4 |
| JSC8-G03 |
8 |
G3/8 |
| JSC8-G04 |
8 |
G1/2 |
| JSC10-G01 |
10 |
G1/8 |
| JSC10-G02 |
10 |
G1/4 |
| JSC10-G03 |
10 |
G3/8 |
| JSC10-G04 |
10 |
G1/2 |
| JSC12-G02 |
12 |
G1/4 |
| JSC12-G03 |
12 |
G3/8 |
| JSC12-G04 |
12 |
G1/2 |
